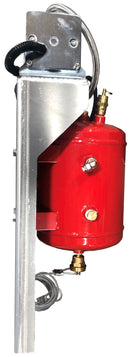

PPI's air compressor system(AC1) is fully assembled on an aluminum bracket. It is designed to be stood vertical and welded into an aluminum boat, but could also be altered to be a bolt-in.
The AC1 requires a power and ground capable of 30 amps, and a switched power to be able to activate the system.
The system shuts off at 150 psi, and turns on at 120 psi. It has a 1/4" air line connection, a pressure relief valve for safety, and a manual drain valve with pull cord.
30' of 1/4" airline is included.
This system has SAE J1171 ignition protection certification to meet USCG certifications for use in an engine compartment.
INSTALLATION INSTRUCTIONS
